Merging Segments
To combine two adjacent segment features for the purpose of managing their characteristics as a combined record, a Merge may be performed.

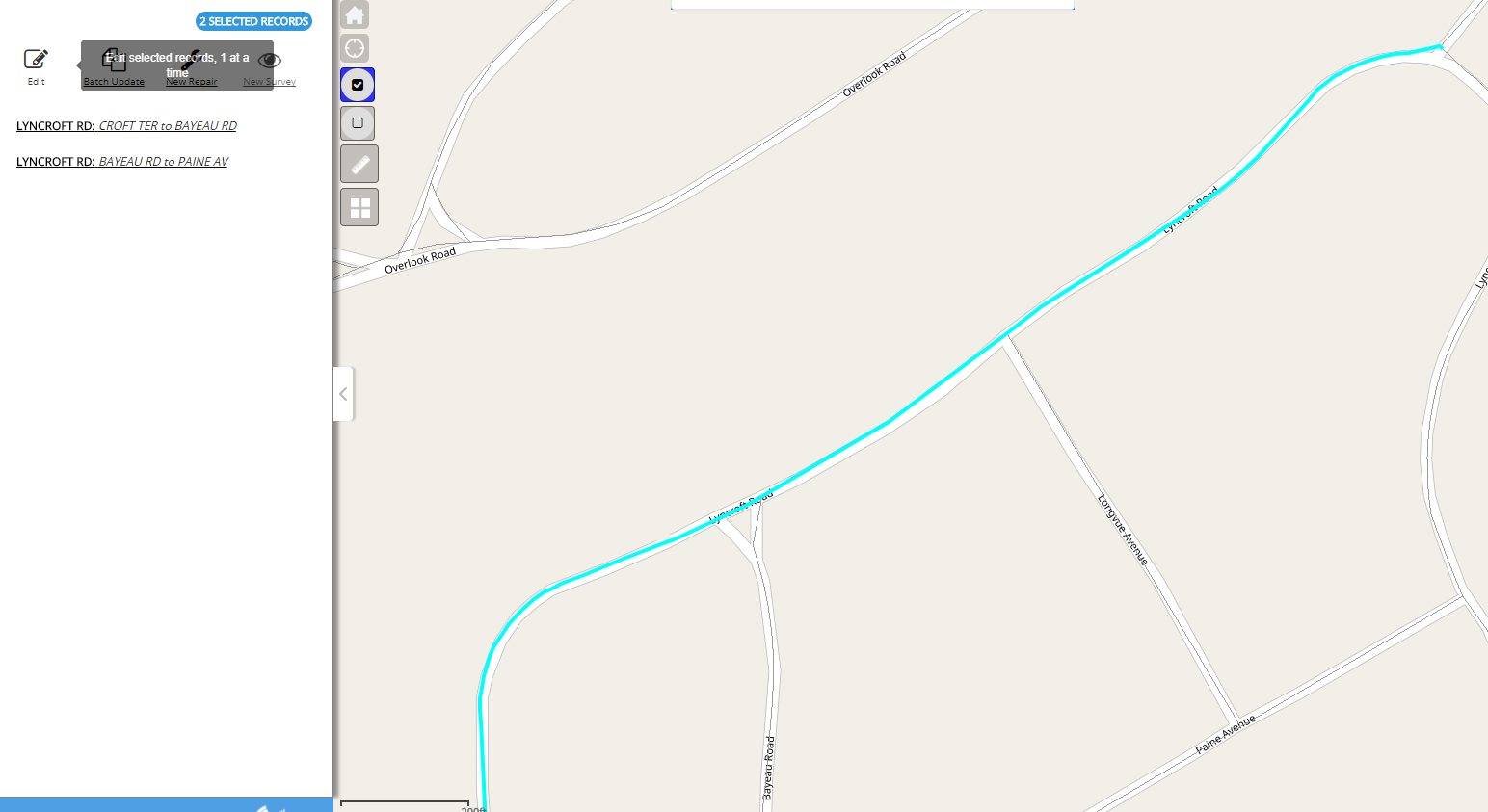

To merge two segments, select them from the map.
.png)

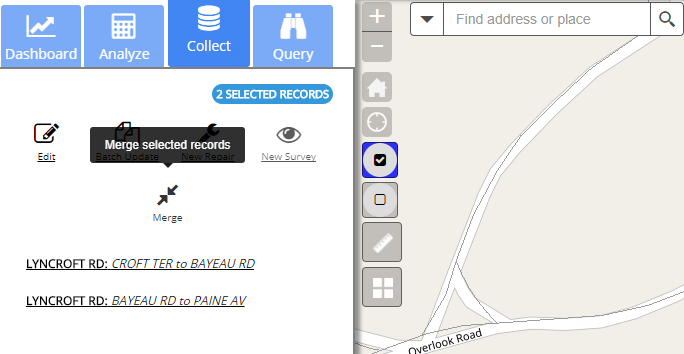

Click “Edit” and then “Merge”.
.png)

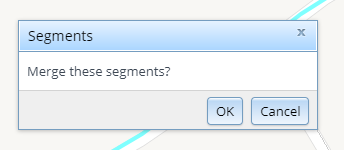

When prompted, confirm “OK” to
.png)

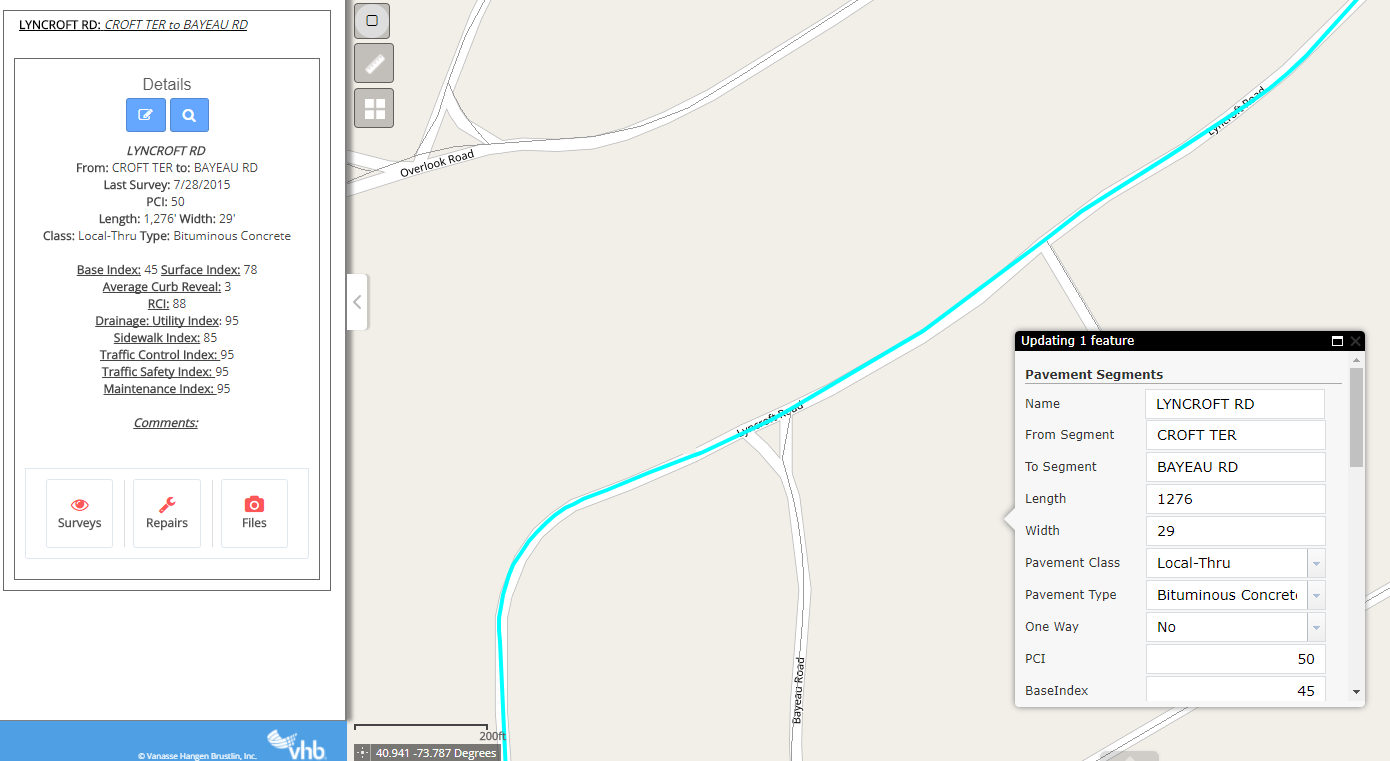

The two records will be immediate merged and the resulting pavement segment placed into edit mode so can update relevant information such as the From and To Segment Name values.
.png)
Note: the historical survey and repair records from both input segments will be now associated with the new merged record.
It is recommended that the Refresh Map Data command is used directly after Pavement segment geometry edits to ensure the edits are properly reflected in the map and detail views.
